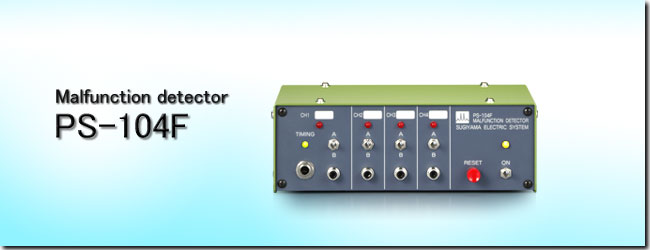

PS-104F is a malfunction detection device with four channels of the contact detection method for the press machine. The jack method is used for detection-input terminals of all channels in front of the panel.

With the toggle switch, the input polarity of all channels is immediately switchable to A or B.
If the timing signal is input, CH1 turns to the synchronous detection method.
The power supply of an electronic sensor can be provided from the 3-contact jack to CH1.
Remote resetting is available by connecting the external reset.
Turning off the power supply switch of PS-104F can prohibit the press machine from continuously operating if the continuous inhibition output is connected.
The stop outputs are two systems (CH1/2 and CH3/4).
